Details

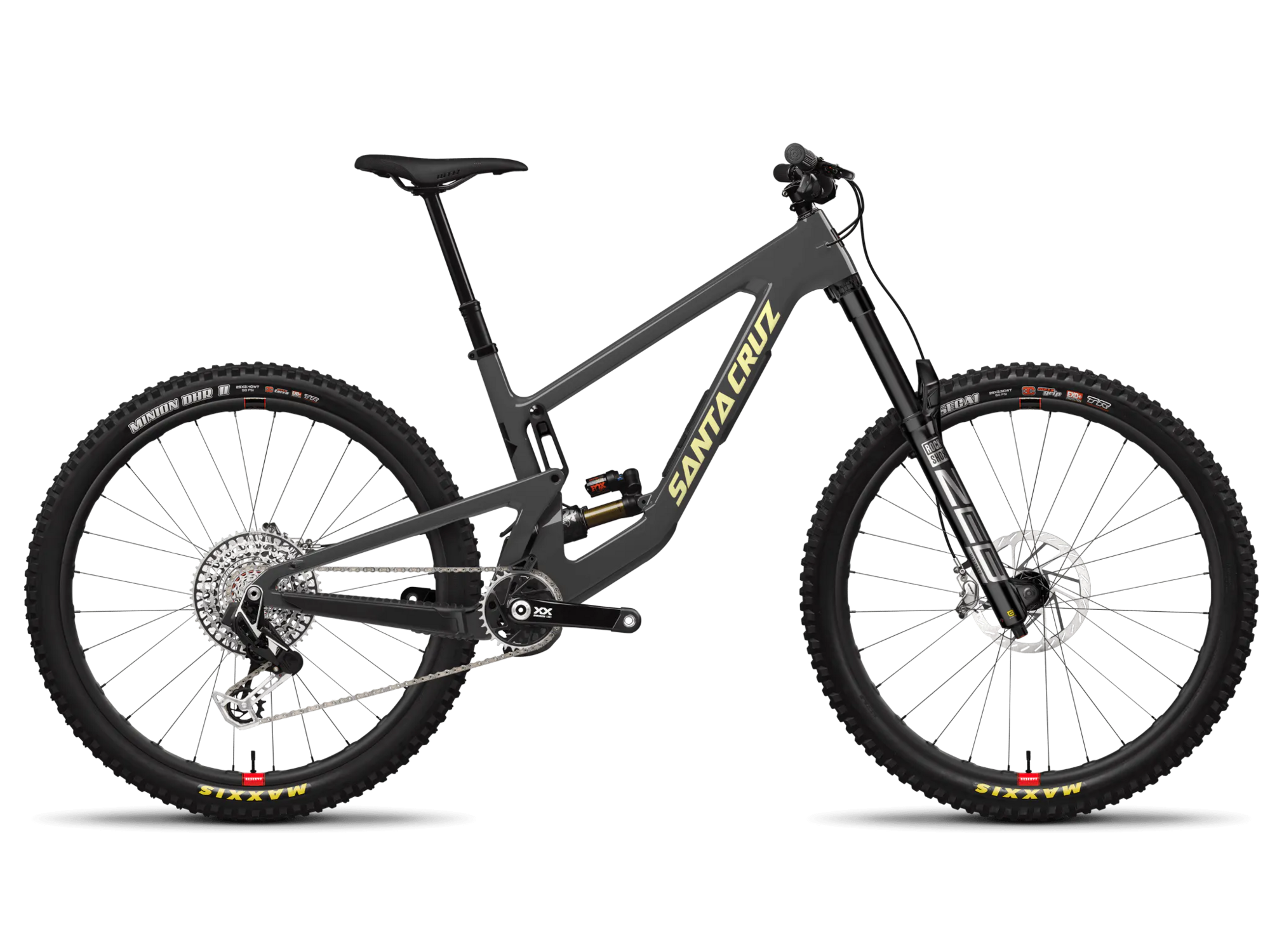

A downhill bike that goes everywhere
Seriously. The Megatower’s big wheels, long travel, and tough carbon fiber chassis delivers the high-speed security traits of a downhill bike. Yet the relatively-steep seat tube angle and size-specific geo maintain the Mega’s mega pedaling ability—elevating its reputation as the perfect choice for big gravity rides and DH park laps.
Design Details:
Glovebox
Place everything you need for a ride beneath the reassuringly high-quality latch and panel in the downtube, including your driving gloves. The Glovebox also comes with a Tool Wallet and Tube Purse, two refined pouches for keeping your essentials close to hand.
Full carbon CC frame
Carbon CC frames use the very best materials and production processes available, are made in our own factory, and have a lifetime warranty.
Steeper seat tube angle
The steep seat tube angle puts you in the right place to scale the steepest pitches to get to the wildest descents. Even better, it gets progressively steeper as the sizes get larger so everyone sits in the right spot.
165mm of VPP™ travel
A relatively-low leverage ratio not only makes setup easier but delivers a more damped, controlled feel across the travel range.
Coil and water compatibility
Even with a lower-link flip chip and the option to run large-body shocks, like a coil, you’re still able to fit a water bottle inside the front triangle.
Longer travel?
165mm of travel comes standard, but if you choose to run a shock with a longer, 65mm stroke, you can bump it up to 170mm.
Details matter
The frame details are completed with a neat mud flap that protects the rear shock, a rubberized downtube protector that shrugs off strikes, and tidy cable routing within the frame and swingarm.
Proportional geo
The Megatower's chainstay length is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.
Full size range
From size small to XXL, no one misses out on the Megatower.
SRAM Eagle Transmission - stronger, better shifting, wirelessly
The next generation SRAM Eagle Transmission specced on our CC-carbon models is a radically robust, fully integrated and interdependent wireless transmission. Built around the universal constant of the wheel axle itself, the Full Mount hangerless attachment creates a far stronger connection to the frame and the super strong derailleur provides unprecedented strength. Shifting under load is made possible due to a combination of X-SYNC technology and cassette mapping, creating seamless shifts even during your hardest power output. The new AXS Pods are extremely ergonomic and highly customizable, so shifting gears is light and intuitive. It's simply the most advanced transmission and nearly as tough as the mountain itself.
Frame Size | Small | Medium | Large | X-Large | XX-Large |
---|---|---|---|---|---|
Reach | hi/lo (mm) | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
Stack | hi/lo (mm) | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
Head Tube Angle | hi/lo | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° |
Seat Tube Length | hi/lo (mm) | 380 | 405 | 430 | 460 | 500 |
Front Center | hi/lo (mm) | 770 | 799 | 826 | 855 | 886 |
BB Height | hi/lo (mm) | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
BB Drop | hi/lo (mm) | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
Wheelbase | hi/lo (mm) | 1206 | 1236/1237 | 1266 | 1298 | 1333/1334 |
Rear Center | hi/lo (mm) | 436/437 | 437/438 | 440/441 | 443/444 | 447/448 |
Head Tube Length | hi/lo (mm) | 90 | 100 | 115 | 135 | 150 |
Top Tube Length | hi/lo (mm) | 570 | 594/595 | 613 | 637/638 | 666/667 |
Seat Tube Angle | hi/lo | 77.24°/77.0° | 77.42°/77.2° | 77.8°/77.5° | 77.8°/77.5° | 77.8°/77.5° |
Standover Height | hi/lo (mm) | 709/705 | 716/712 | 723/718 | 722/717 | 724/720 |
Frame Size | Rider Height |
---|---|
Small | 5'1" - 5'5" |
Medium | 5'5" - 5'9" |
Large | 5'9" - 6'1" |
X-Large | 6'1" - 6'4" |
XX-Large | 6'4" - 6'7" |
Specs
Fork | RockShox Zeb Ultimate, 170mm |
---|---|
Hubs |
Front: Industry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h Rear: Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h |
Rims | Reserve 30|HD 29" |
Stem | Industry Nine A35, 40mm |
Chain | SRAM XX Eagle T-Type, Flattop, 12spd |
Tires |
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+ Rear: Maxxis Minion DHR II 29"x2.4"WT, 3C MaxxTerra, EXO+ |
Brakes | Code Ultimate Stealth |
Rotors | SRAM HS2 200mm |
Saddle | WTB Silverado Medium, Ti |
Headset | Chris King DropSet 3 Integrated Headset |
Crankset | SRAM XX Eagle DUB T-Type Crankset, 32t |
Seatpost | OneUp V2 Dropper Post, 31.6 |
Shifters | SRAM AXS Pod Ultimate Bridge |
Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
Rear Shock | FOX Float X2 Factory, 230x62.5 |
Tape/Grips | Santa Cruz Bicycles House Grips |
Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
Rear Derailleur | SRAM XX Eagle AXS T-Type, 12spd |
Accessories & Extras | SRAM eTap Powerpack 1 Battery |
Cassette/Freewheel | SRAM XX Eagle T-Type, 10-52t |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN |
---|---|---|
Gloss Carbon / Small / 29-inch | 192219343686 | 58-24264-188-2-821-444302 |
Gloss Purple / Small / 29-inch | 192219343693 | 58-24264-188-2-822-444302 |
Gloss Purple / Medium / 29-inch | 192219343716 | 58-24264-188-3-822-444302 |
Gloss Carbon / Medium / 29-inch | 192219343709 | 58-24264-188-3-821-444302 |
Gloss Carbon / Large / 29-inch | 192219343723 | 58-24264-188-4-821-444302 |
Gloss Purple / Large / 29-inch | 192219343730 | 58-24264-188-4-822-444302 |
Gloss Purple / X-Large / 29-inch | 192219343754 | 58-24264-188-5-822-444302 |
Gloss Carbon / X-Large / 29-inch | 192219343747 | 58-24264-188-5-821-444302 |
Gloss Carbon / XX-Large / 29-inch | 192219343761 | 58-24264-188-6-821-444302 |
Gloss Purple / XX-Large / 29-inch | 192219343778 | 58-24264-188-6-822-444302 |
