Details

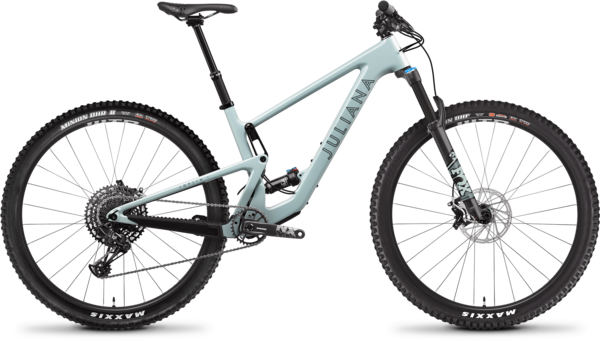

A little bit (cross) country. A little bit rock and roll. The Joplin is a bit of an XC wild child, a light bike that’s heavy on capability with a “let’s go” attitude to any trail.
Let’s go fast. Let’s go far. Let’s go until your legs are ready to give up, and then go some more. Let’s make every second count. Let’s carve rides out of busy days and put those lines on the map on your done list.
The Joplin’s lean frame and 29-inch wheels float over washboard bumps with the same ease it devours jagged ledges. A geometry bred for long days in the saddle is blended with 130mm of travel in the front and 120mm in the rear, creating a capable climber that doesn’t flinch when roots get ragged and rocks start to roll. The lower link VPP suspension offers a responsive pedaling platform that’s ready to get up and go the moment you are. Whether you’re flossing rock gardens or making the rider in front of you your next hare, the Joplin is one rapid trail fox that will take you farther than you thought you could and give you the confidence to go bigger than you thought you would.
With a size range that starts at XS, this bike brings big-wheel benefits to those of us in the fun-size category, too. And yes, every size in the line fits a water bottle inside the main triangle because XS doesn’t mean “do things by half”. Tying up the package is a range of component builds that weave the line between fun and fast, creating a bike that’s ready to race the distance or just race the clouds home.
So, what are you waiting for? Let’s go!
- Carbon C frame
- Fox Rhythm 34 130mm fork
- FOX Float Performance DPS rear shock
- WTB ST i25 TCS 2.0 29-inch rims
- Maxxis Minion tires
- 12-speed SRAM NX Eagle drivetrain
- SDG Tellis dropper seatpost

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
Specs
Frame | Carbon C 29" 120mm Travel VPP |
---|---|
Fork | FOX Rhythm 34, 130mm, 29" |
Headset | Cane Creek 10 IS Integrated |
Rear Shock | FOX Float Performance DPS |
Rims/Wheels | WTB ST i25 TCS 2.0 29" |
Hubs |
Front: SRAM MTH 716, 15x110, 32h Rear: SRAM MTH 746, 12x148, 32h |
Spokes | Sapim Race |
Tires |
Front: Maxxis Minion DHF, 29 x 2.3", 3C EXO TR Rear: Maxxis Minion DHR II 29 x 2.3" EXO TR |
Crankset | SRAM NX Eagle 148 DUB |
Chainrings | 30T |
Bottom Bracket | SRAM DUB 68/73mm |
Chain | SRAM NX Eagle, 12spd |
Rear Derailleur | SRAM NX Eagle, 12spd |
Cassette/Rear Cogs | SRAM PG1230, 12spd, 11-50t |
Shifters | SRAM NX Eagle, 12spd |
Handlebars | RaceFace Ride |
Tape/Grips | Juliana Grip |
Stem | RaceFace Ride |
Brakes | SRAM Guide T |
Saddle | Juliana Segundo |
Seat Post | SDG Tellis |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Mist / X-Small | 192219168708 | 58-21218-106-1-721-461701 |
Mist / Small | 192219168715 | 58-21218-106-2-721-461701 |
Mist / Medium | 192219168722 | 58-21218-106-3-721-461701 |
