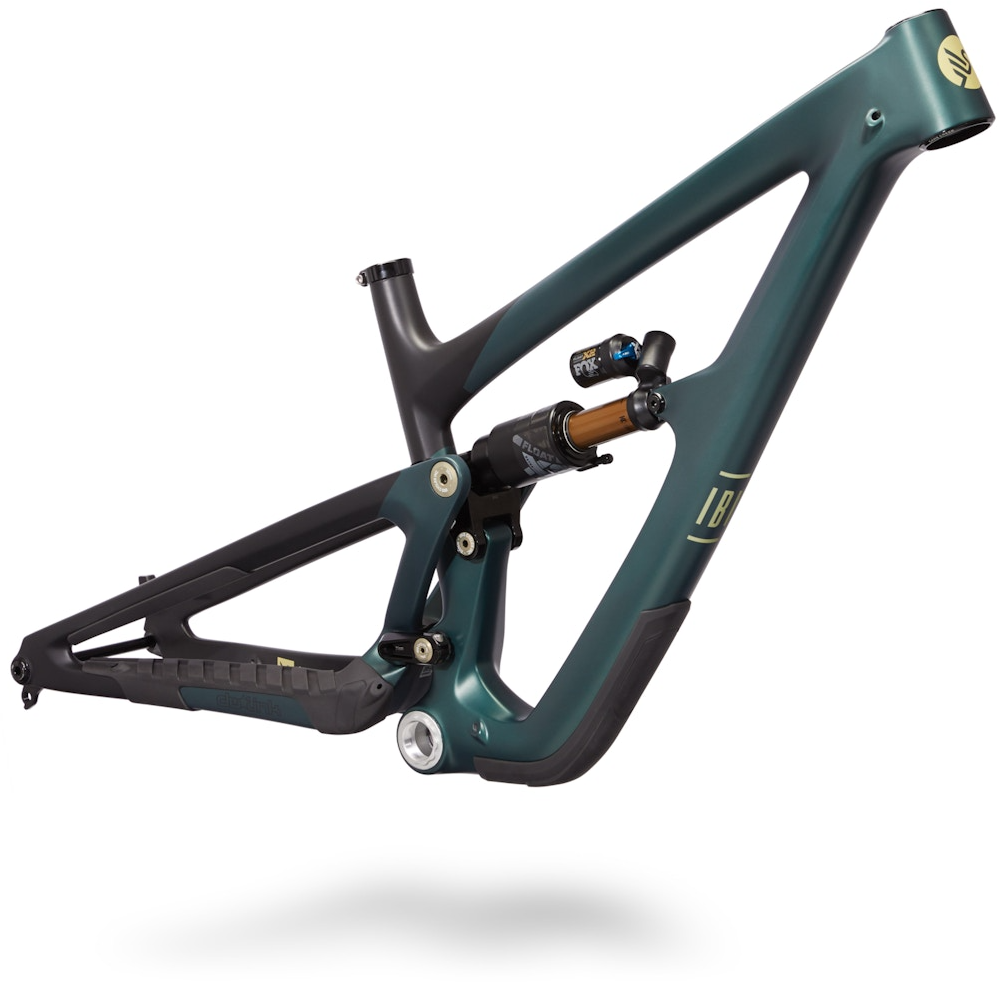

Ibis HD6 w/ Fox Float X2 Factory EVOL 230 x 65 (Frame Only)

Ibis HD6 w/ Fox Float X2 Factory EVOL 230 x 65 (Frame Only)
  • Color: Enchanted Forest Green
  • Color: Lavender Haze
  • Color: Traffic Cone Orange
$3,899.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Sorry, this item is currently not available. Please check back.

Details

Introducing the HD6, the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

GEOMETRY
The 29" front wheel, bol­stered by 180mm of trav­el, assures sta­bil­i­ty, whereas the 27.5" rear wheel allows for addi­tion­al maneu­ver­abil­i­ty. The 165mm of trav­el skill­ful­ly man­ages any fall­out. With a 64-degree head tube angle (one-degree slack­er than the cur­rent Rip­mo), a BB height sim­i­lar to Mojo HD5, and chain­stay length iden­ti­cal to the cur­rent Rip­mo (despite the 27.5" rear wheel), the bike main­tains an equi­lib­ri­um between agili­ty and stability.

FIVE SIZES
In order to place every size rid­er in the same position over the rear wheel, the HD's seat tube angles get steep­er as frame size increases. With four sizes, this would have result­ed in larger jumps in reach, so we added a fifth size. The small­er incre­ments across five sizes means that you can find just the right size. We encourage rid­ers to choose their bike size based on their desired reach and top tube measurements.

COIL COMPATIBLE
Our upper link sus­pen­sion lay­out is pro­gres­sive enough to be sen­si­tive off the top, yet sup­port­ive enough for the biggest hits. It is also com­pat­i­ble with all coil shocks, for those longer race stages that can tax air shock performance.

DW-LINK
The sus­pen­sion lay­out may be new, but it's still DW-Link. The inher­ent effi­cien­cy means you don't need an over­damped shock to climb well. Less shock damp­ing allows the wheels to stay plant­ed on the ground, pro­vid­ing more trac­tion and that hov­er-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.

TRACTION TUNE
Our cus­tom tuned front and rear sus­pen­sion fea­ture extra light high speed com­pres­sion and rebound damp­ing to deliv­er unpar­al­leled trac­tion. This allows the wheels to flut­ter through rough ter­rain like a tro­phy truck storm­ing through a set of whoops.

BUSHINGS
Tired of buy­ing bear­ings each sea­son? So were we. That's why we've strate­gi­cal­ly employed bush­ings where they're most effec­tive and bear­ings else­where. The IGUS bush­ings in our low­er link are not only lighter and stiffer, they're vir­tu­al­ly main­te­nance-free. We believe so strongly in them, we back them with free life­time replacement.

LIGHTWEIGHT PREMIUM CARBON
All our bikes are built from the high­est grade mate­ri­als and opti­mized for the best strength, weight, stiff­ness, and ride performance, no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our com­plete Enduro ready builds weigh as lit­tle as 32 lbs.

INTERNAL CABLE ROUTING
Bikes that look pret­ty on the out­side should look pret­ty on the inside. We use car­bon fiber tubes mold­ed with­in each frame. Push the cable in, watch it pop out a beau­ti­ful moment indeed.

PROTECT YOUR INVESTMENT
A thick rub­ber down­tube pro­tec­tor deflects debris, while our chain­stay pro­tec­tor fea­tures thick raised sec­tions to help damp­en chain slap noise. And our sim­­ple-yet-ele­­gant link­age pro­tec­tors stop mud and rocks thrown by the tire, keep­ing your beau­ti­ful bike beautiful.

LIFETIME WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

Geometry

Sizes:
FRAME SIZE12345
Seat Tube Length (mm) A 400 400 406 450 470
Top Tube Length (mm) B 585 610 630 655 685
Head Tube Length (4mm stack of lower cup not included) C 81 86 91 100 115
Chainstay Length (mm) D 435 435 435 435 435
Seat Tube Angle E 76° 76° 76.5° 77° 77.5°
Head Tube Angle G 64° 64° 64° 64° 64°
Wheelbase (mm) H 1202 1228 1256 1288 1328
BB Height (with 2.5WT Maxxis Assegai tires) 345 345 345 345 345
BB Drop (mm) K 30 30 30 30 30
Stack (mm) I 621 625 630 638 651
Reach (mm) J 430 454 480 508 541
Saddle height for seat tube angle F 650 700 745 790 830
Standover (mm) L 725 735 752 765 769
Trail (mm) 136 136 136 136 136
Fork Offset (mm) 44 44 44 44 44
Sizes:
Sizing Guide (Rider Height)
1 158–168CM
2 165–175CM
3 173–183CM
4 180–191CM
5 188–201CM

Specs

Frame Carbon front and rear triangle
Rear Shock Fox Float X2 Factory Series with EVOL, 230mm x 65mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Enchanted Forest Green / 1 / 29-inch front / 27.5-inch rear 840345305312 HDC1GN0000000
Enchanted Forest Green / 2 / 29-inch front / 27.5-inch rear 840345305343 HDC2GN0000000
Enchanted Forest Green / 3 / 29-inch front / 27.5-inch rear 840345305374 HDC3GN0000000
Enchanted Forest Green / 4 / 29-inch front / 27.5-inch rear 840345305404 HDC4GN0000000
Enchanted Forest Green / 5 / 29-inch front / 27.5-inch rear 840345305435 HDC5GN0000000
Lavender Haze / 1 / 29-inch front / 27.5-inch rear 840345305329 HDC1LV0000000
Lavender Haze / 2 / 29-inch front / 27.5-inch rear 840345305350 HDC2LV0000000
Lavender Haze / 3 / 29-inch front / 27.5-inch rear 840345305381 HDC3LV0000000
Lavender Haze / 4 / 29-inch front / 27.5-inch rear 840345305411 HDC4LV0000000
Lavender Haze / 5 / 29-inch front / 27.5-inch rear 840345305442 HDC5LV0000000
Traffic Cone Orange / 1 / 29-inch front / 27.5-inch rear 840345305336 HDC1OR0000000
Traffic Cone Orange / 2 / 29-inch front / 27.5-inch rear 840345305367 HDC2OR0000000
Traffic Cone Orange / 3 / 29-inch front / 27.5-inch rear 840345305398 HDC3OR0000000
Traffic Cone Orange / 4 / 29-inch front / 27.5-inch rear 840345305428 HDC4OR0000000
Traffic Cone Orange / 5 / 29-inch front / 27.5-inch rear 840345305459 HDC5OR0000000
